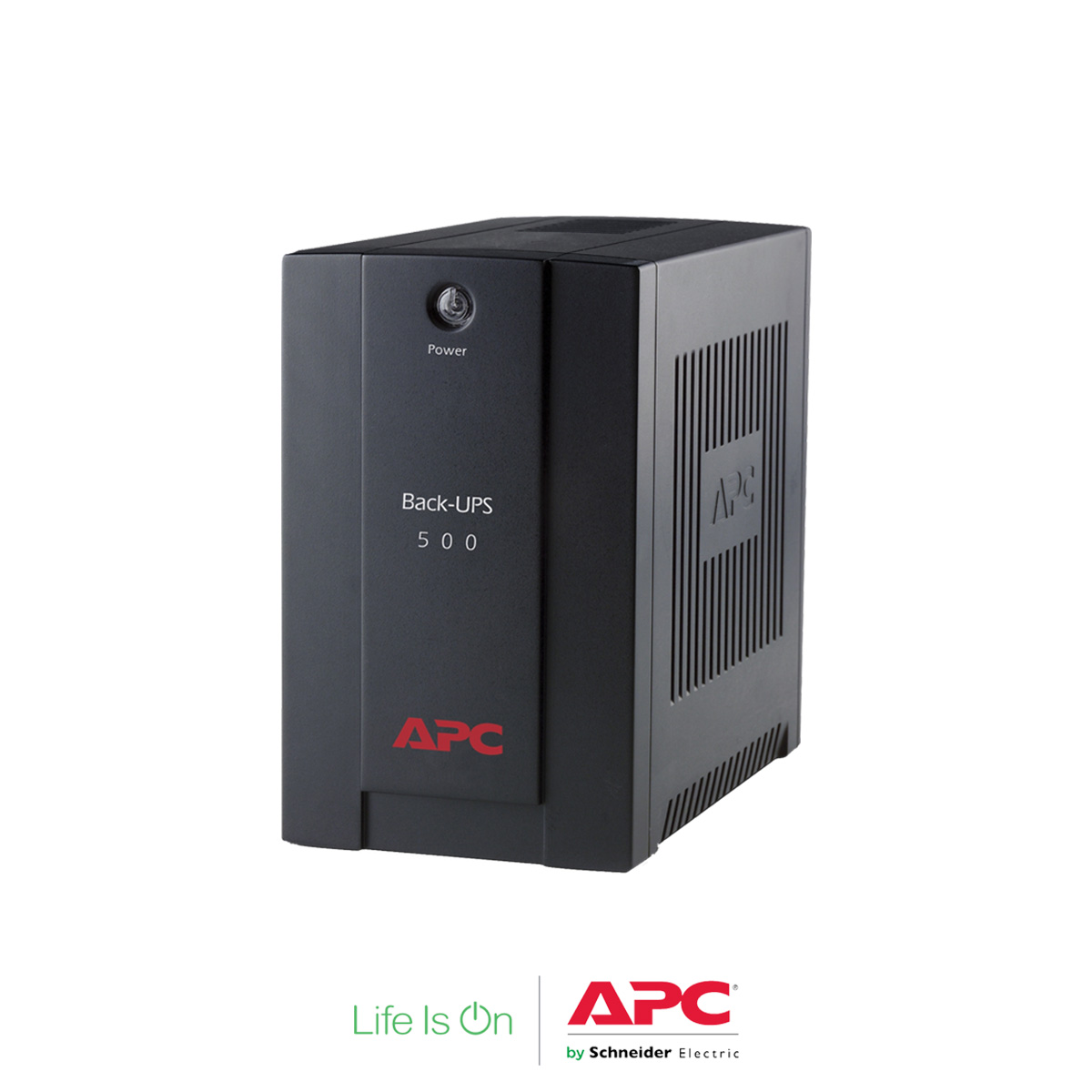

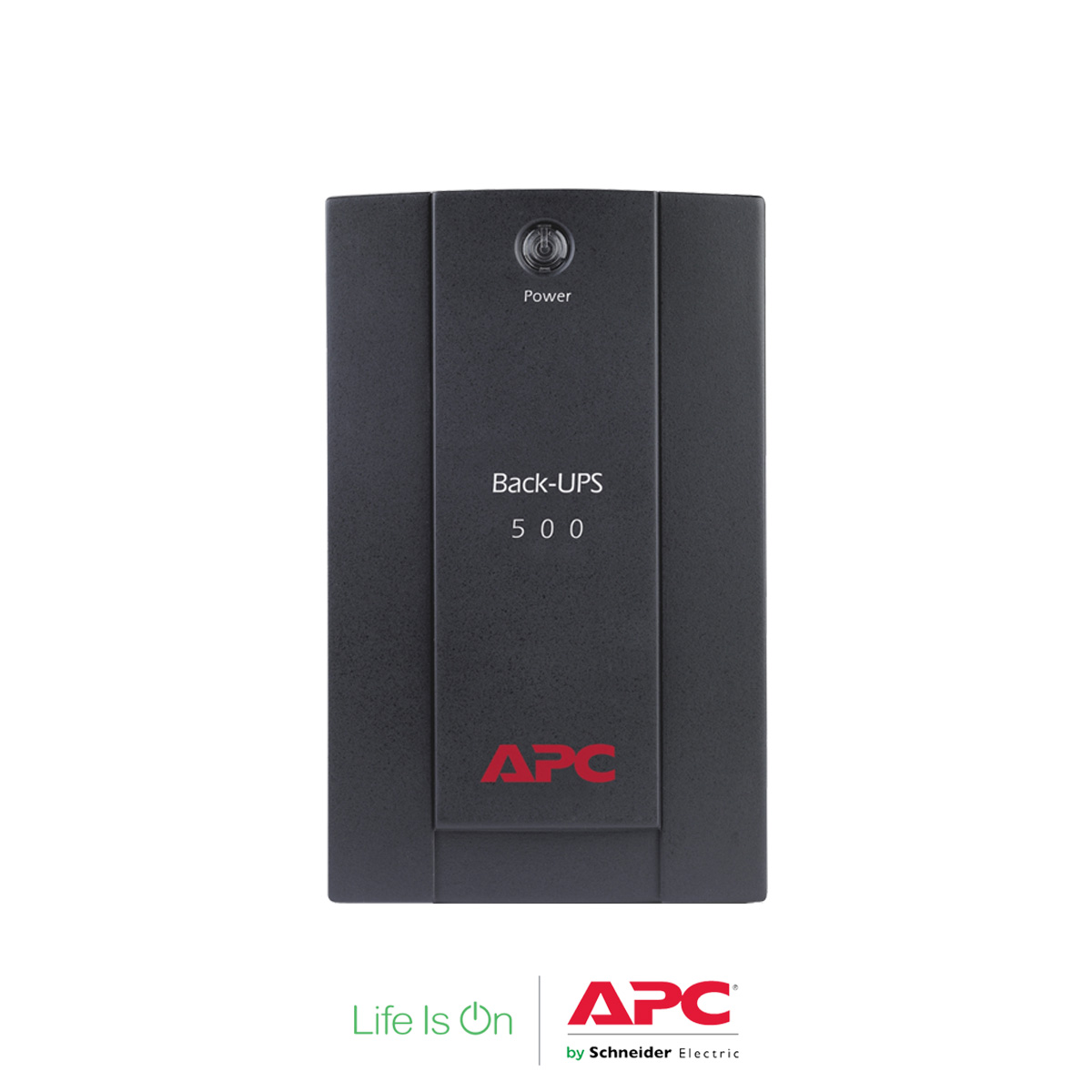

جهاز الإمداد غير المنقطع للطاقة APC Back-UPS 500VA, 230V, AVR, 3 IEC outlets

Model: BX500CI

تحميل ملف المواصفات

SKU BX500CI Categories , Tags , , , , , ,
نظرة عامة
Lead time Usually in Stock



الرئيسية
Main input voltage 230 V AC
Rated power in W 300 W
Rated power in VA 500 VA

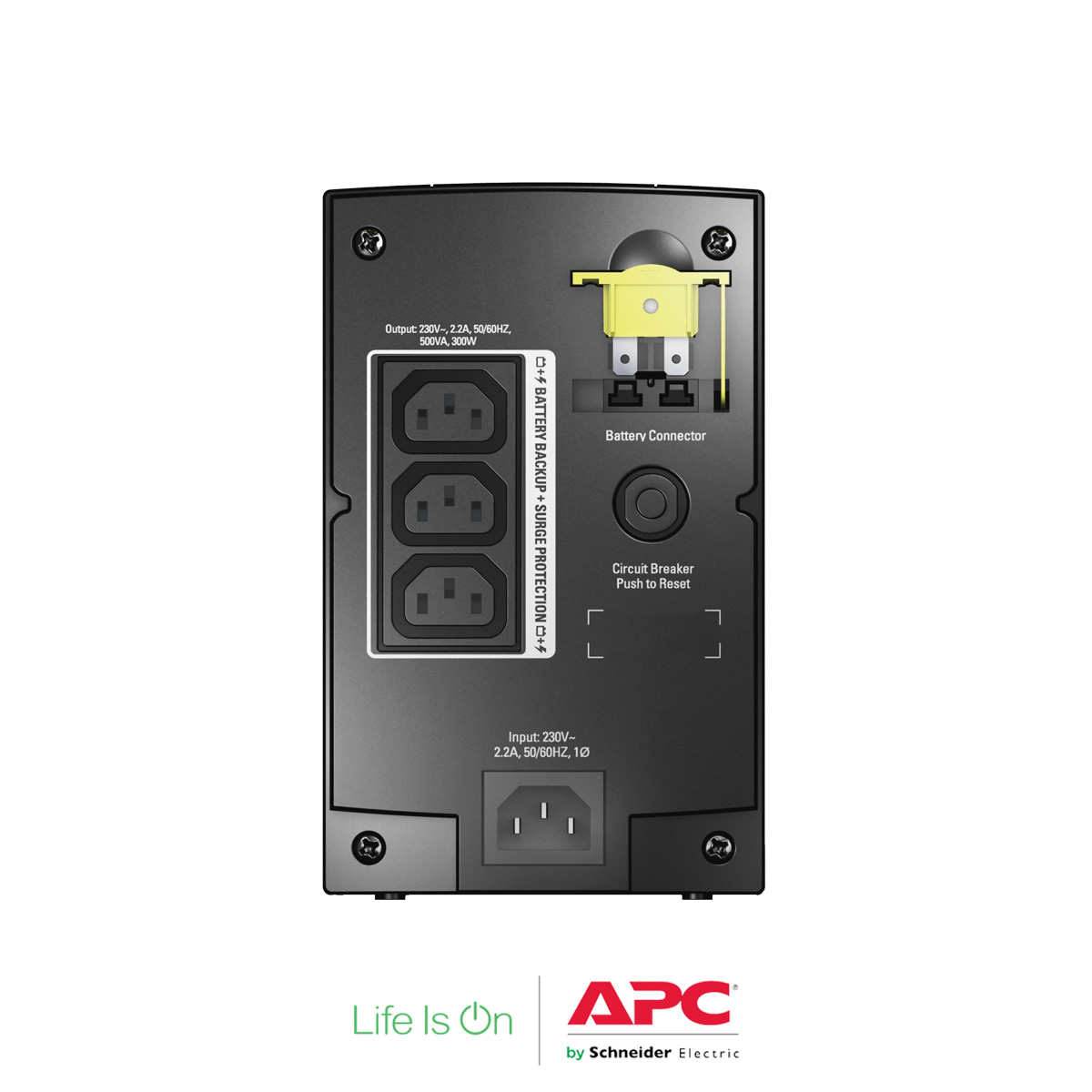

Output connection type 3 IEC 60320 C13

1 IEC Jumpers
Cable length 1.83 m
Number of cables 1



عام
Provided equipment User manual
Product web sub-family Entry level
Number of power module free slots 0
Number of power module filled slots 0
Redundant No



Physical
Colour Black
Height 18.5 cm
Width 11.5 cm
Depth 21.3 cm
Net weight 5.2 kg
Mounting support Desktop
Mounting preference No preference
Mounting mode Not rack-mountable
Two post mountable 0
USB compatible No



المدخلات
Network frequency 45…65 Hz
Input voltage limits 160…280 V
Maximum input current 2 A
Switching current capacity 7 A



المخرجات
Maximum Configurable Power in W 300 W
Output frequency 50 Hz sync to mains

50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
UPS type Line interactive
Wave type Stepped approximation to a sinewave
Maximum configurable power in VA 500 VC
Transfer time 6 ms typical : 10 ms maximum



الشهادات
Product certifications CE
Standards EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018



Environmental
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…10000 m
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m
Acoustic level 45 dBA



البطاريات و وقت التشغيل
Run Time View Runtime Graph
Efficiency View Efficiency Graph
Number of batteries filled slots 0
Number of battery free slots 0
Battery voltage 12 V
Battery capacity 6.4 Ah
Battery charger power 4700 W rated
Battery power in VAH 47 VAh runtime
Extended runtime 0



التوصيل و الادارة
Control panel LED status display with on line : on battery : replace battery and overload indicators
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm



الحماية
Surge energy rate 273 J



وحدات التعبئه
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 25.7 cm
Package 1 width 29.1 cm
Package 1 Length 19 cm
Package 1 Weight 5.68 kg
Unit Type of Package 2 2
Unit Type of Package 3 60
SCC14 60731304307367



الضمان
Warranty 2 years repair or replace
