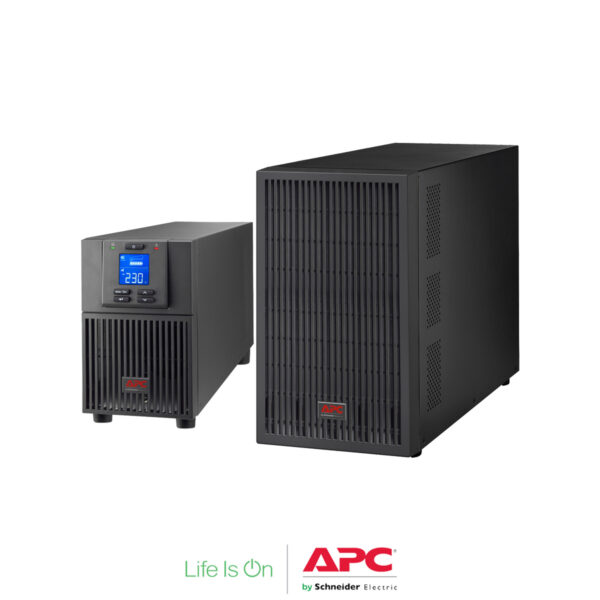

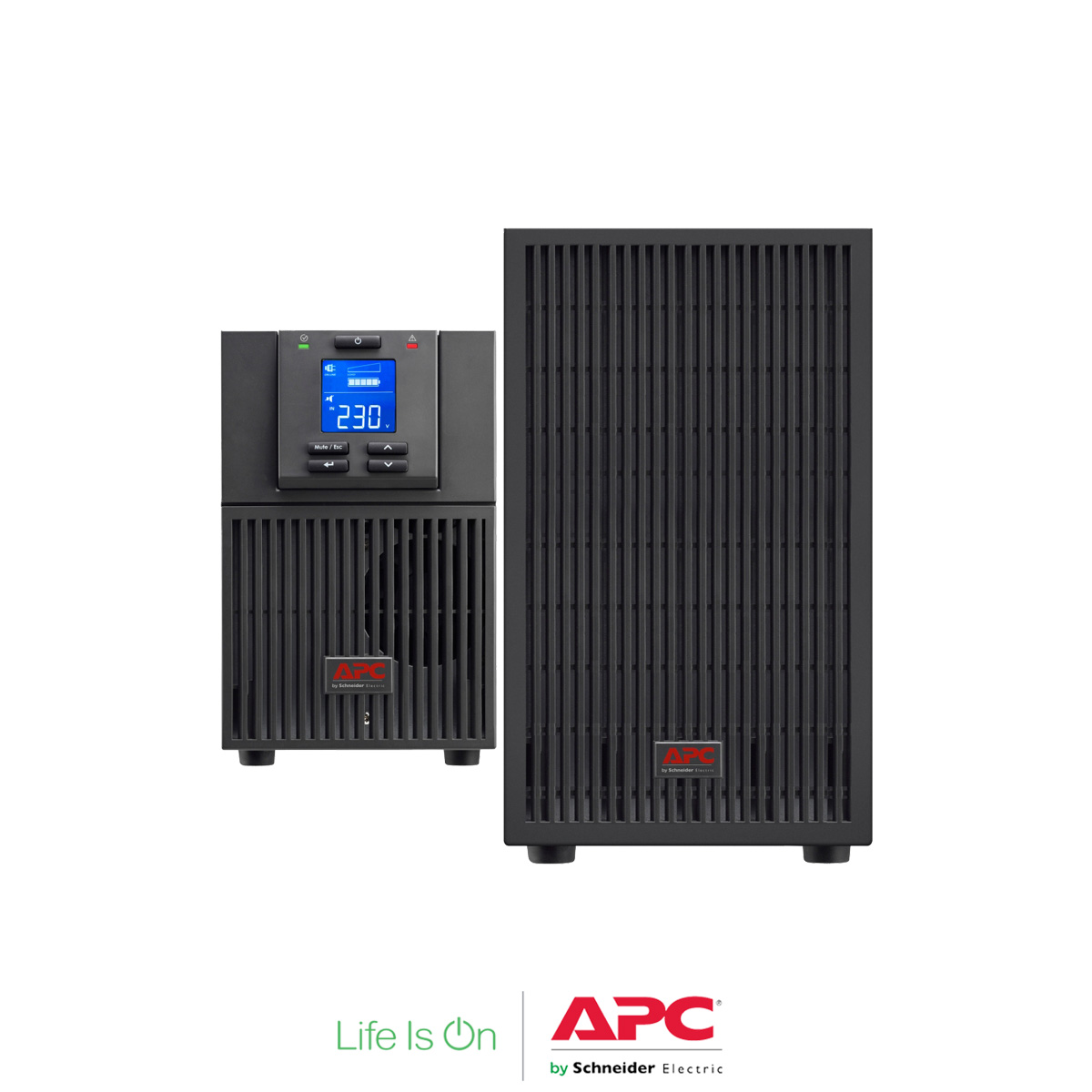

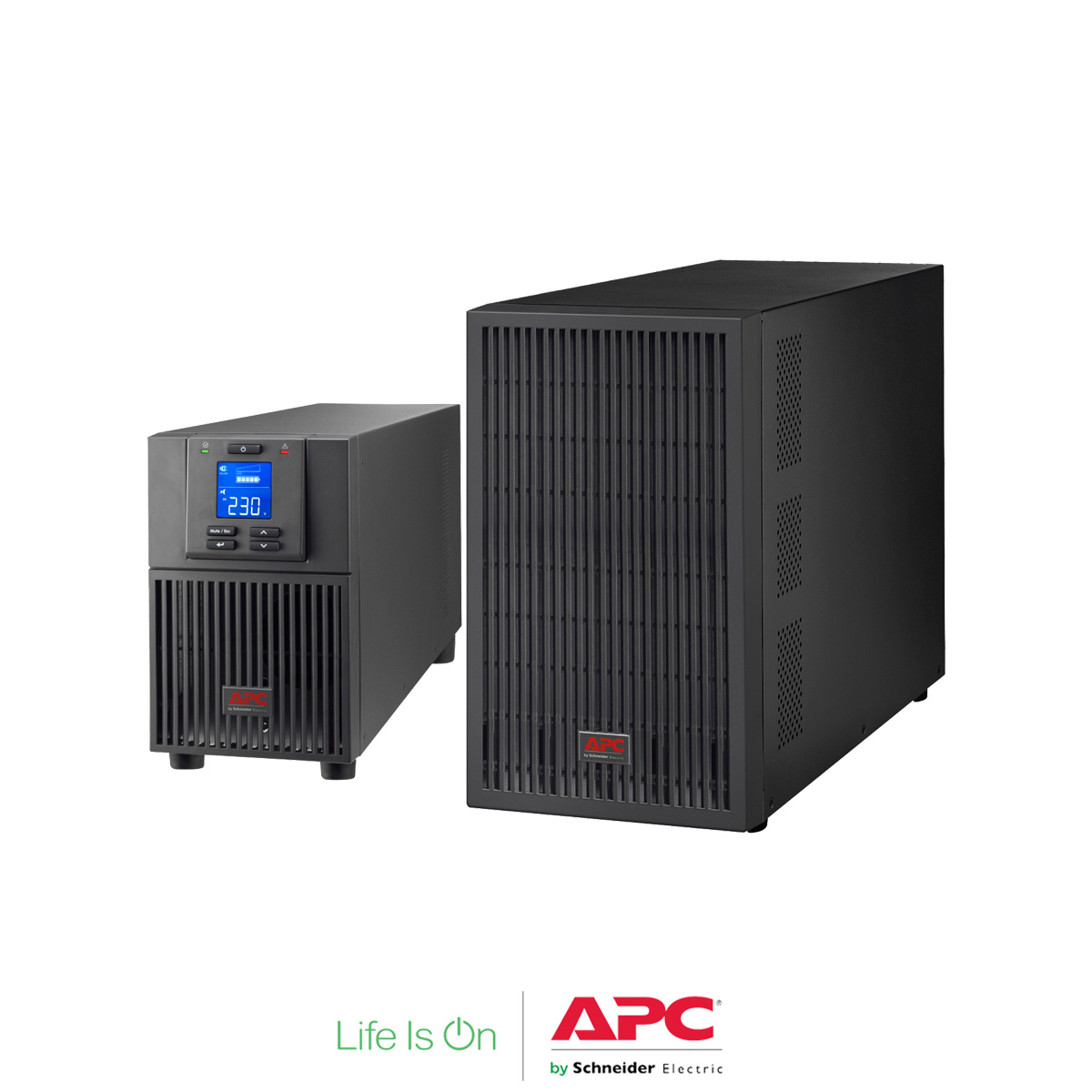

وحده إمداد الطاقة غير المنقطعة من شنايدر الكتريك APC Easy UPS On-Line SRV 2000 VA 230V with Extended Runtime Battery Pack


Model: SRV2KIL

تحميل ملف المواصفات

SKU SRV2KIL Categories , , , Tags , , , ,
نظرة عامة
تقديم Easy UPS 1 Ph On-Line عالية الجودة يوفر حماية أساسية للطاقة لظروف الطاقة غير المستقرة ، مما يضمن اتصالاً ثابتًا وموثوقًا به في أكثر اللحظات حرجًا.
التوافر Usually in Stock



Main
Main input voltage 230 V
Other input voltage 220 V

240 V

Main output voltage 230 V
Other output voltage 220 V

240 V

Rated power in W 1600 W
Rated power in VA 2000 VA

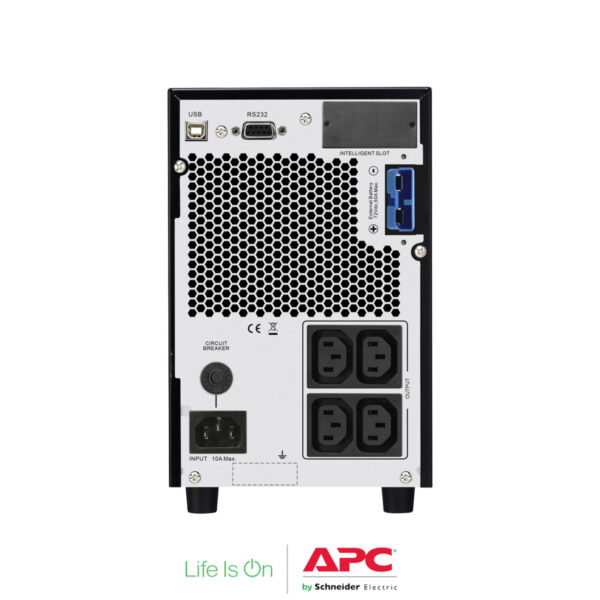

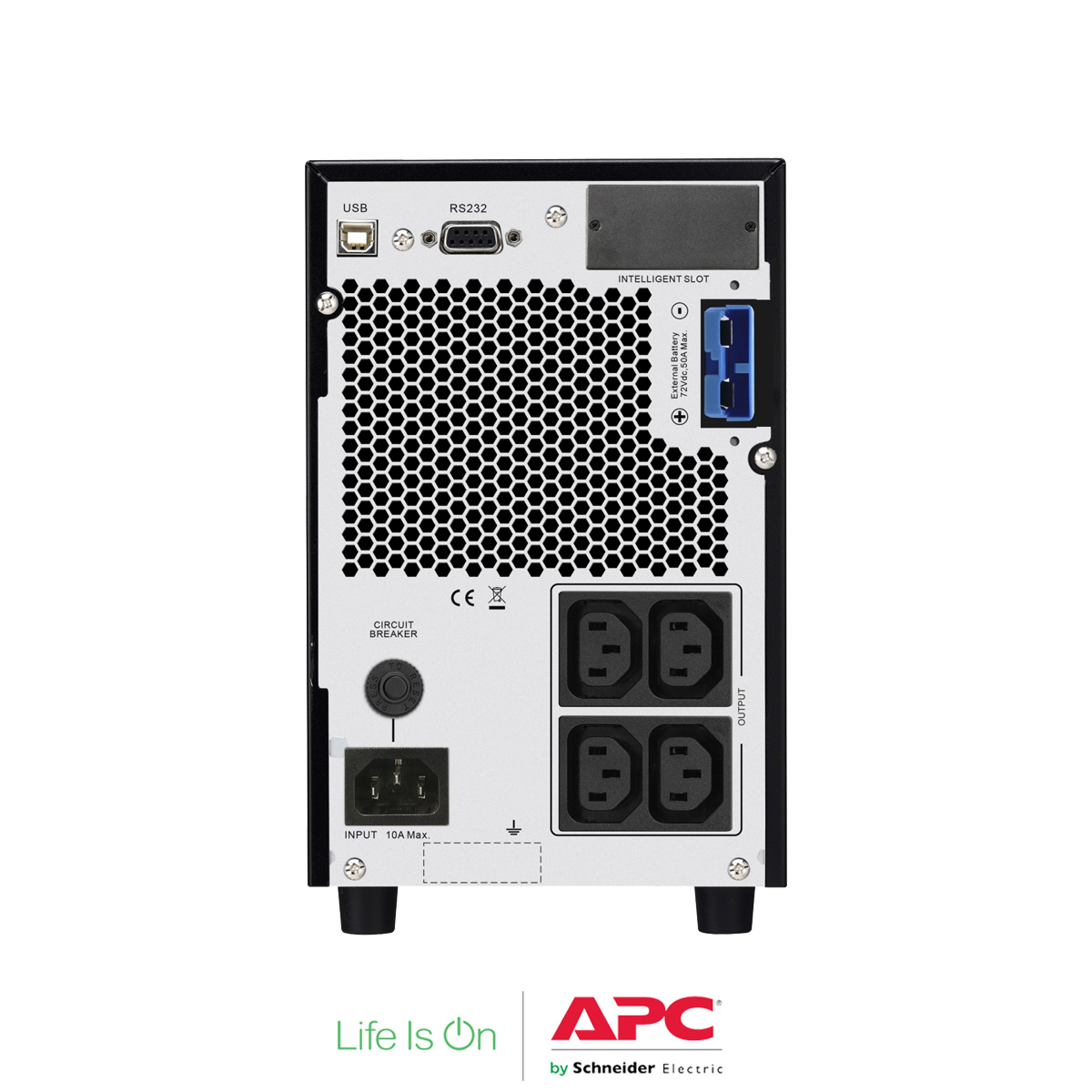

Input Connection type IEC 60320 C14
nb of power socket outlets 4 IEC 60320 C13
Cable length 1.52 m
Number of cables 1
Provided equipment USB cable

User manual

CD with software



General
Number of power module filled slots 0
Number of power module free slots 0
Redundant No



Physical
Color Black
Height 33.6 cm
Width 33.5 cm
Depth 40.5 cm
Net weight 54.4 kg
Mounting location Front
Mounting preference No preference
Mounting mode Not rack-mountable
USB compatible Yes
Mounting position Vertical



Input
Input voltage limits 110…285 V half load

160…280 V full load

Network frequency 40…70 Hz auto sensing



Output
Maximum Configurable Power in VA 2000 VC
Maximum configurable power in W 1600 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion 3 %
UPS type Double conversion online
Wave type Sine wave
Efficiency 88 % (full load)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1



Conformance
product certifications CE

EAC

TISI



Environmental
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for storage -20…50 °C
Storage Relative Humidity non-condensing 0…95 %
Storage altitude 0…15000 m
Acoustic level 50 dBA
Heat dissipation 745 Btu/h
IP degree of protection IP20



Batteries & Runtime
Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery type Lead-acid battery
Battery voltage 72 V
Number of batteries filled slots 0
Number of battery free slots 0
Battery recharge time 5.5 h
Battery life 3…5 year(s)
Battery charger power 350 W rated

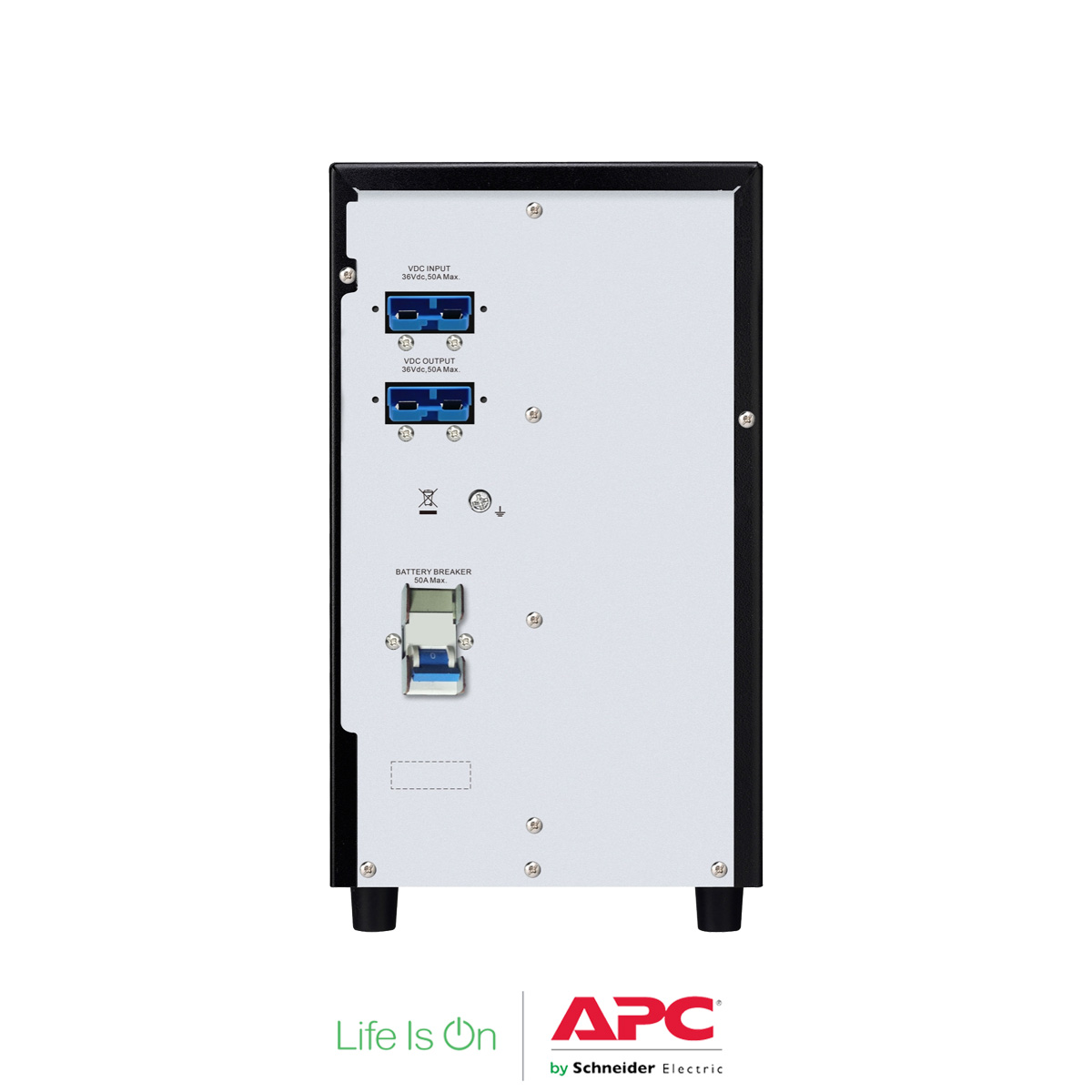

Battery option SRV72BP-9A 1 1944 VAh

SRV72BP-9A 2 2916 VAh

SRV72BP-9A 3 3888 VAh

SRV72BP-9A 4 4860 VAh

SRV72BP-9A



Communications & Management
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Control panel Multifunction LCD status and control console
Free slots 1



Surge Protection and Filtering
Surge energy rate 600 J



Packing Units
Package 1 Weight 49.3 kg
Package 1 Height 46.5 cm
Package 1 width 56 cm
Package 1 Length 56.5 cm



Contractual warranty
Warranty 2 years repair or replace
