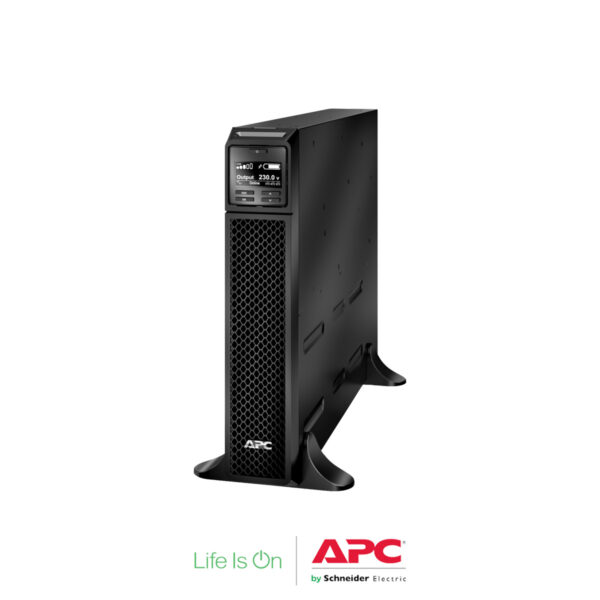

وحده إمداد الطاقة غير المنقطعة من شنايدر الكتريك APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, Smart Slot, Extended runtime, W/O rail kit

Model: SRT2200XLI

تحميل ملف المواصفات

SKU SRT1500XLI-1 Categories , , Tags , , , ,
نظرة عامة
Presentation High density, double-conversion on-line power protection with scalable runtime.
Lead time Usually in Stock



الرئيسية
Main input voltage 230 V
Other input voltage 220 V

240 V
Main output voltage 230 V
Other output voltage 220 V

240 V
Rated power in W 1980 W
Rated power in VA 2200 VA
Plug standard BS1363A British

IEC 60320 C20

Schuko CEE 7 / EU1-16P
Output Connection type 8 IEC 60320 C13

2 IEC Jumpers

2 IEC 60320 C19
Cable length 2.44 m
Number of cables 1
Battery type Lead-acid battery
Provided equipment CD with software

Country-specific detachable power cord

Documentation CD

Installation guide

Removable support feet

USB cable

Warranty card



عام
Product web sub-family High density
Number of power module 1400
Number of power module filled slots 0
Number of power module free slots 0
Redundant No



المواصفات
Color Black
Height 43.2 cm
Width 8.5 cm
Depth 58.4 cm
Net weight 25 kg
Mounting location Front
Mounting preference Lower

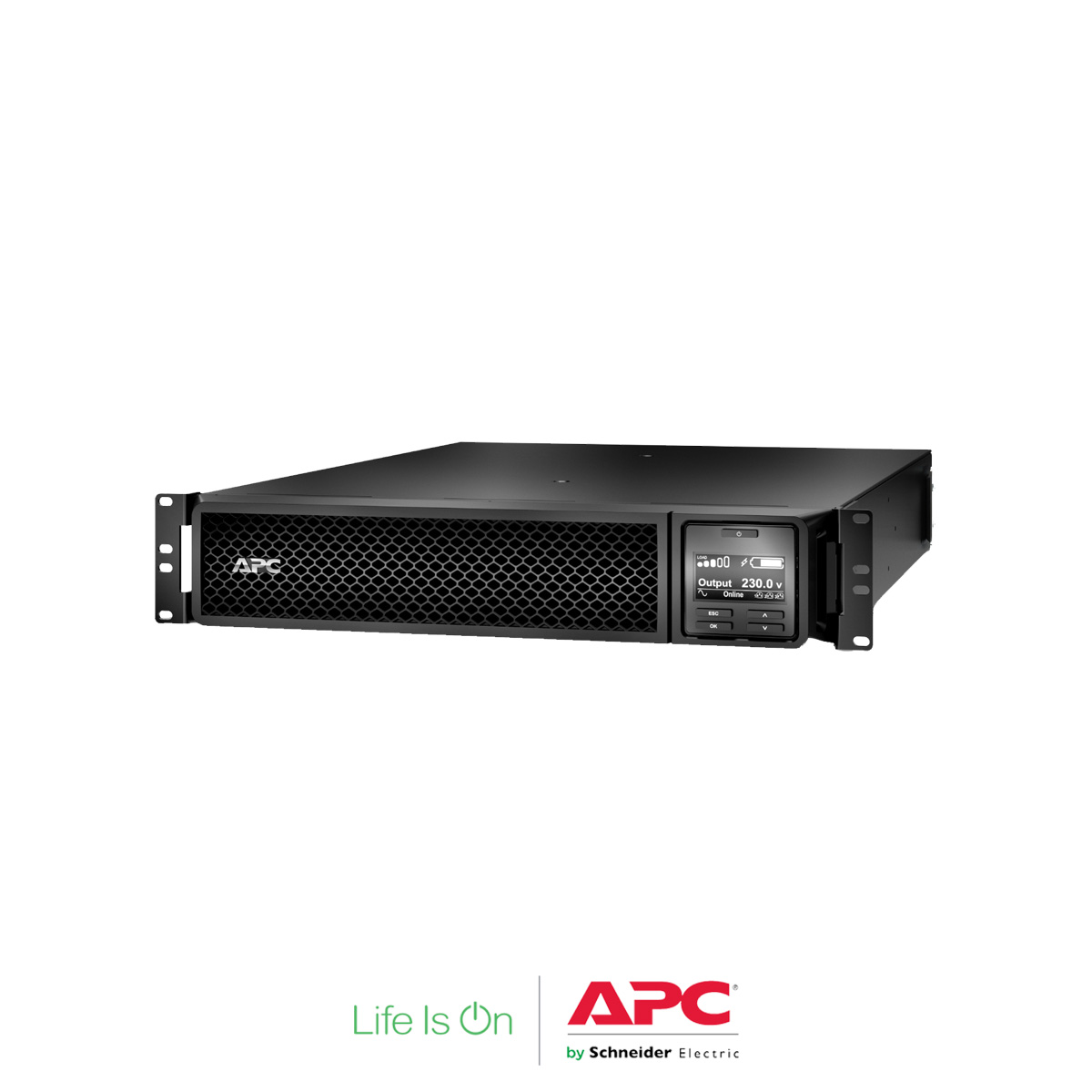

Mounting mode Rack-mounted with kit
Two post mountable 0
USB compatible Yes
Mounting position Vertical



المدخلات
Network frequency 40…70 Hz auto-sensing
Input voltage limits 100…275 V adjustable (half load)



المخرجات
Maximum configurable power in W 1980 W
Harmonic distortion Less than 2 %
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Crest factor 3 : 1
UPS type Double conversion online
Wave type Sine wave
Bypass type Internal bypass (automatic and manual)
Maximum configurable power in VA 2200 VA



الشهادات
Product certifications CE

EAC

RCM

VDE
Marking CE Mark
Standards EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018



Environmental
Ambient air temperature for operation 0…40 °C
Relative Humidity 0…95 % non-condensing
Operating altitude 0…10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
Heat dissipation 703 Btu/h
IP degree of protection IP20



البطاريات ووقت التشغيل
Run Time View Run Time Graph
Efficiency View Efficiency Graph
Number of battery filled slots 1
Number of battery free slots 0
Battery recharge time 3 h
Number of battery replacement quantity 1
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Battery voltage 72 V
Battery charger power 122 W rated
Battery power in VAH 367 VAh runtime
Battery life 3…5 year(s)
Replacement battery APCRBC141
Battery option SRT72BP 1 1101 VAh

SRT72BP 2 1835 VAh

SRT72BP 3 2569 VAh

SRT72BP 4 3303 VAh

SRT72BP 5 4037 VAh

SRT72BP 6 4771 VAh

SRT72BP 8 6239 VAh

SRT72BP 10 7707 VAh
Extended runtime 1



التوصيل والادارة
Free slots 1
Control panel Multifunction LCD status and control console
Alarm Audible and visible alarms prioritized by severity
Emergency power off Yes



الحماية
Surge energy rate 340 J
Packing Units
Unit Type of Package 1 PCE
Package 1 Length 59.9 cm
Number of Units in Package 1 1
Number of Units in Package 3 1
Package 1 Width 81 cm
Package 1 Height 24.6 cm
Package 1 Weight 30.84 kg



الضمان
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
