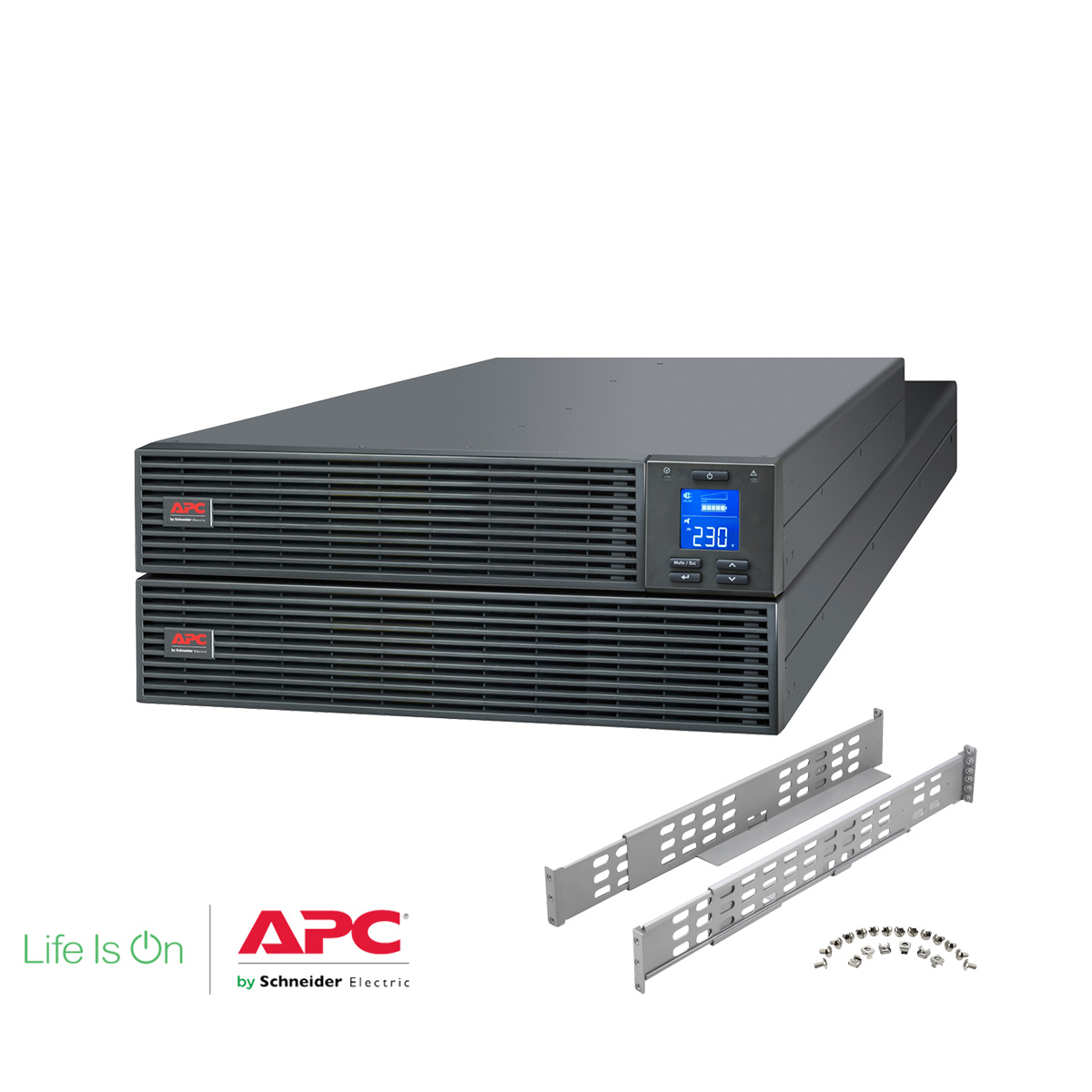

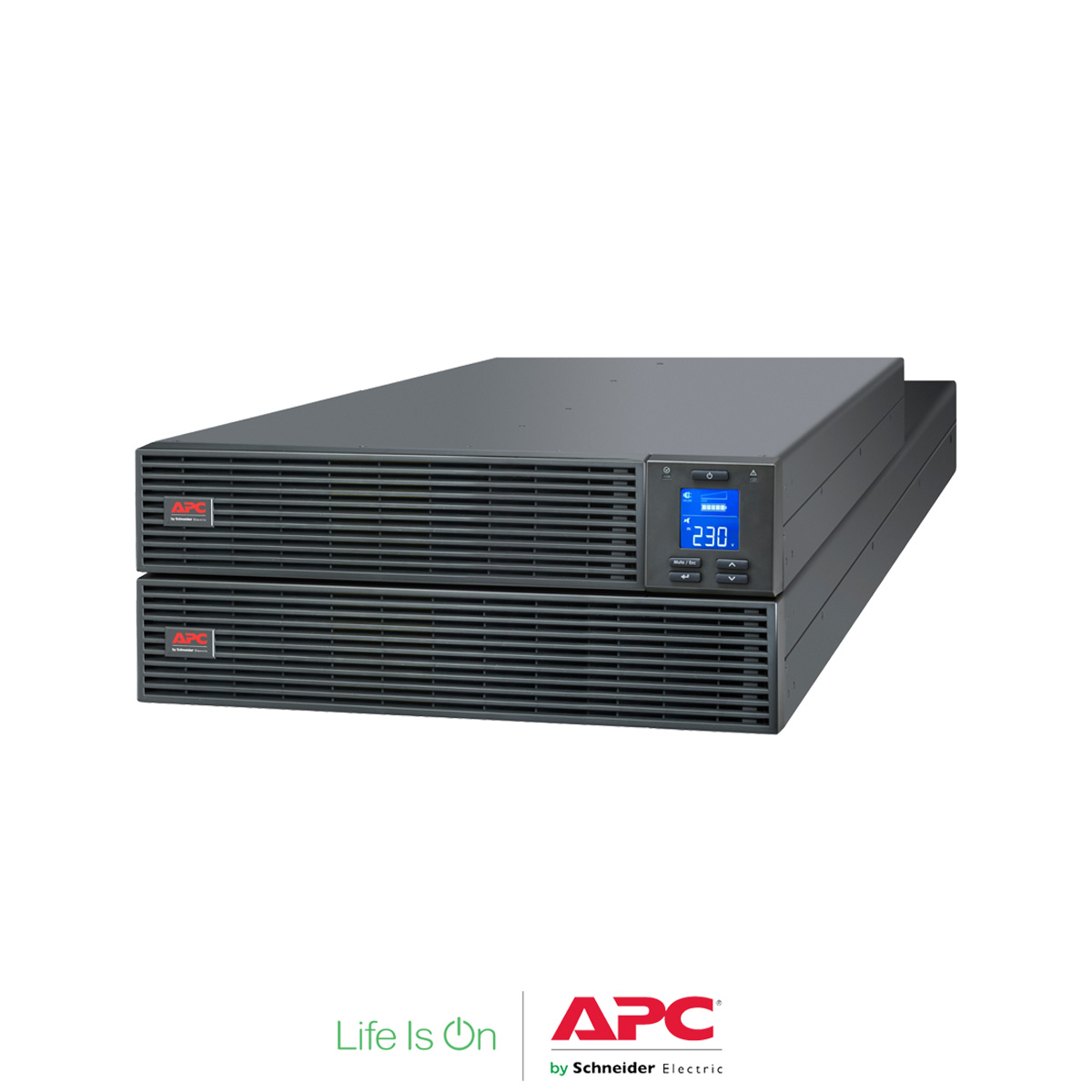

وحده إمداد الطاقة غير المنقطعة من شنايدر الكتريك APC Easy UPS On-Line SRV 10000VA RM 230V with Rail Kit


Model: SRV10KRIRK

تحميل ملف المواصفات

SKU SRV10KRIRK Categories , , , Tags , , ,
نظرة عامة
تقديم UPS عالية الجودة ومزدوجة التحويل على الإنترنت مصممة لتلبية احتياجات حماية الطاقة الأساسية حتى في أكثر ظروف الطاقة غير المستقرة.
التوافر Usually in Stock



Main
Main input voltage 230 V
Other input voltage 220 V

240 V

Main output voltage 230 V
Other output voltage 220 V

240 V

Rated power in W 10000 W
Rated power in VA 10000 VA
Output connector type Hard wire 3-wire (H N + E) 1
Number of rack unit 4U
Provided equipment Basic UPS signalling RS-232 cable

CD with software

Rack mounting brackets

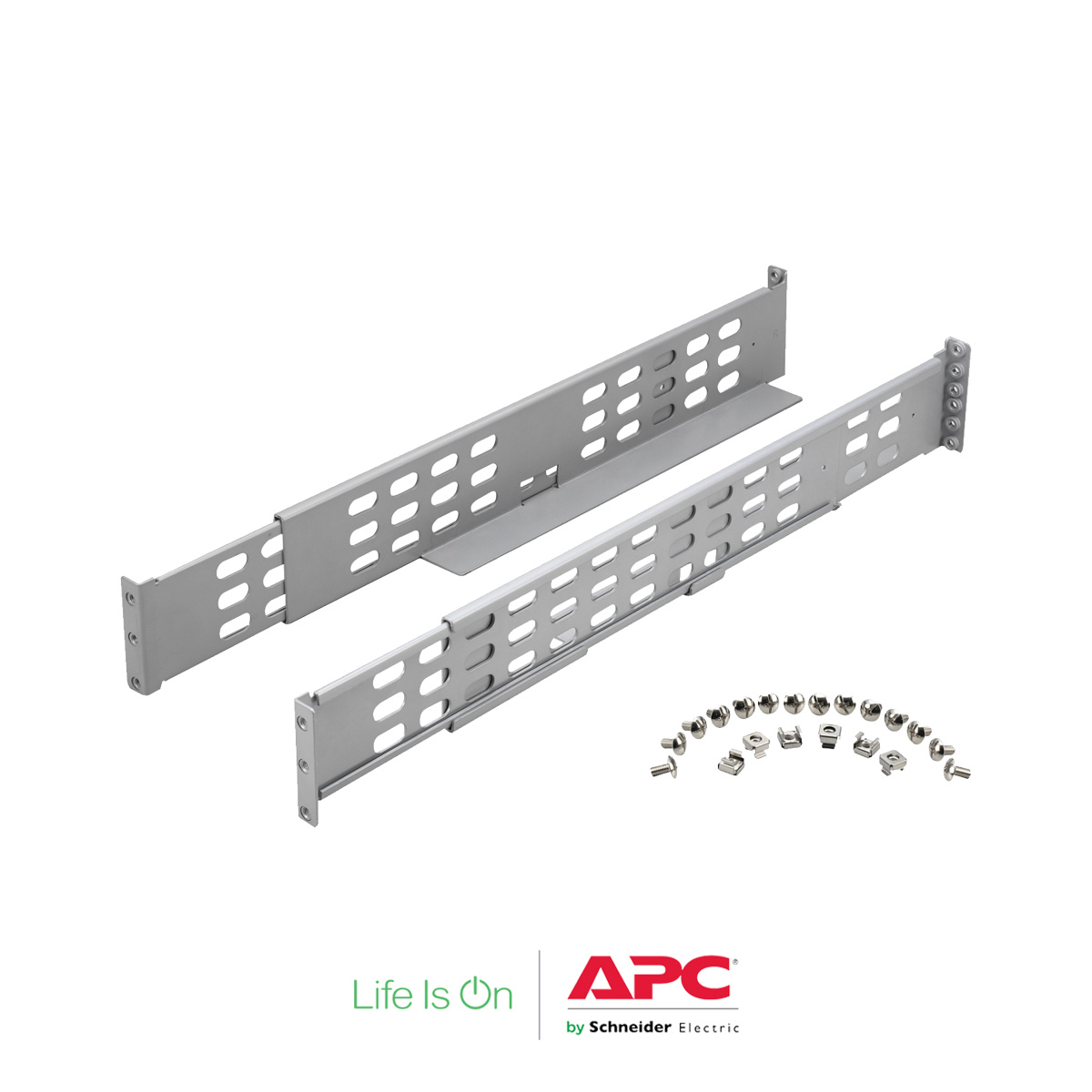

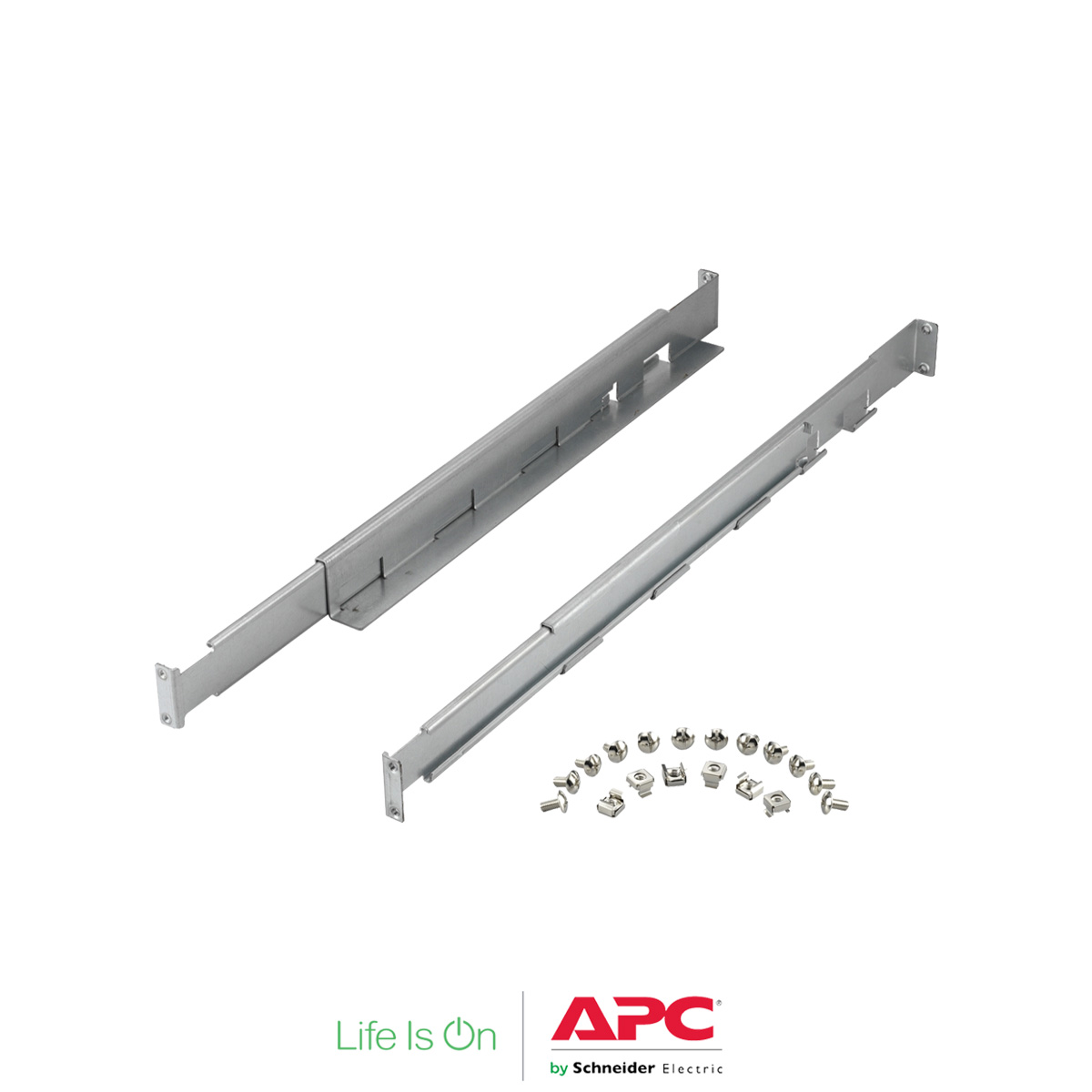

Rack mounting support rails

User manual

USB cable



General
Number of power module filled slots 0
Number of power module free slots 0
Redundant No



Physical
Color Black
Height 17.3 cm
Width 43.8 cm
Depth 71.0 cm
Net weight 68 kg
Mounting location Front
Mounting preference Lower
Mounting mode Rack-mounted with kit
USB compatible Yes
Mounting position Horizontal



Input
Input voltage limits 110…300 V half load

176…300 V full load

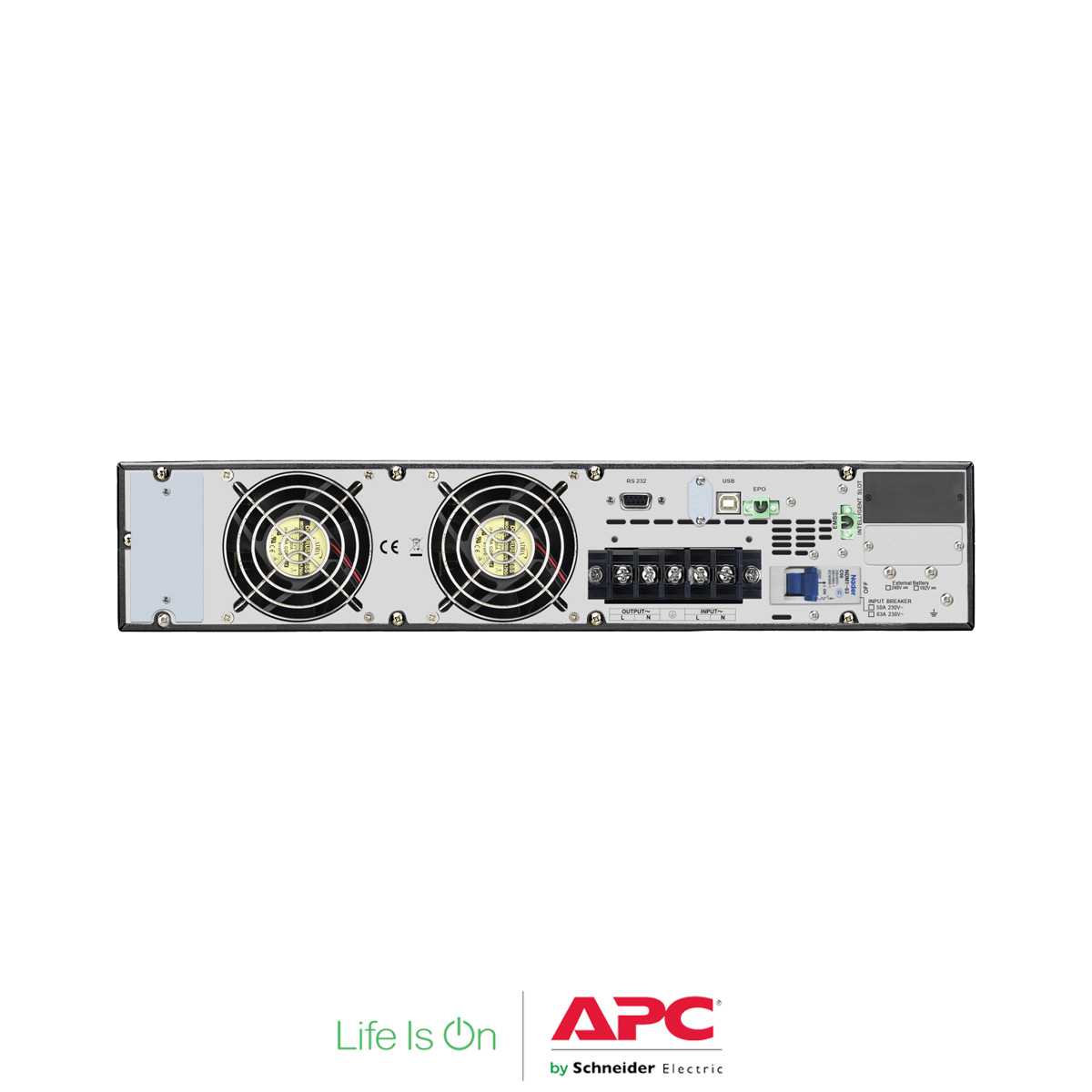

Number of input connectors 1 hard wire 3-wire (1P + N + E)
Network frequency 40…70 Hz auto sensing



Output
Maximum Configurable Power in VA 10000 VC
Maximum configurable power in W 10000 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion 1 %
UPS type Double conversion online
Wave type Sine wave
Efficiency 94 % (full load)
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1



Conformance
Product certifications CE

EAC

TISI





Environmental
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for storage -15…60 °C
Storage Relative Humidity non-condensing 0…95 %
Storage altitude 0…15000 m
Acoustic level 58 dBA
Heat dissipation 2128 Btu/h
IP degree of protection IP20



Batteries & Runtime
Run Time View Run Time Graph
Efficiency View Efficiency Graph
Battery type Lead-acid battery
Battery voltage 192 V
Number of batteries filled slots 0
Number of battery free slots 0
Battery recharge time 9 h
Battery life 3…5 year(s)
Battery charger power 235 W rated



Communications & Management
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

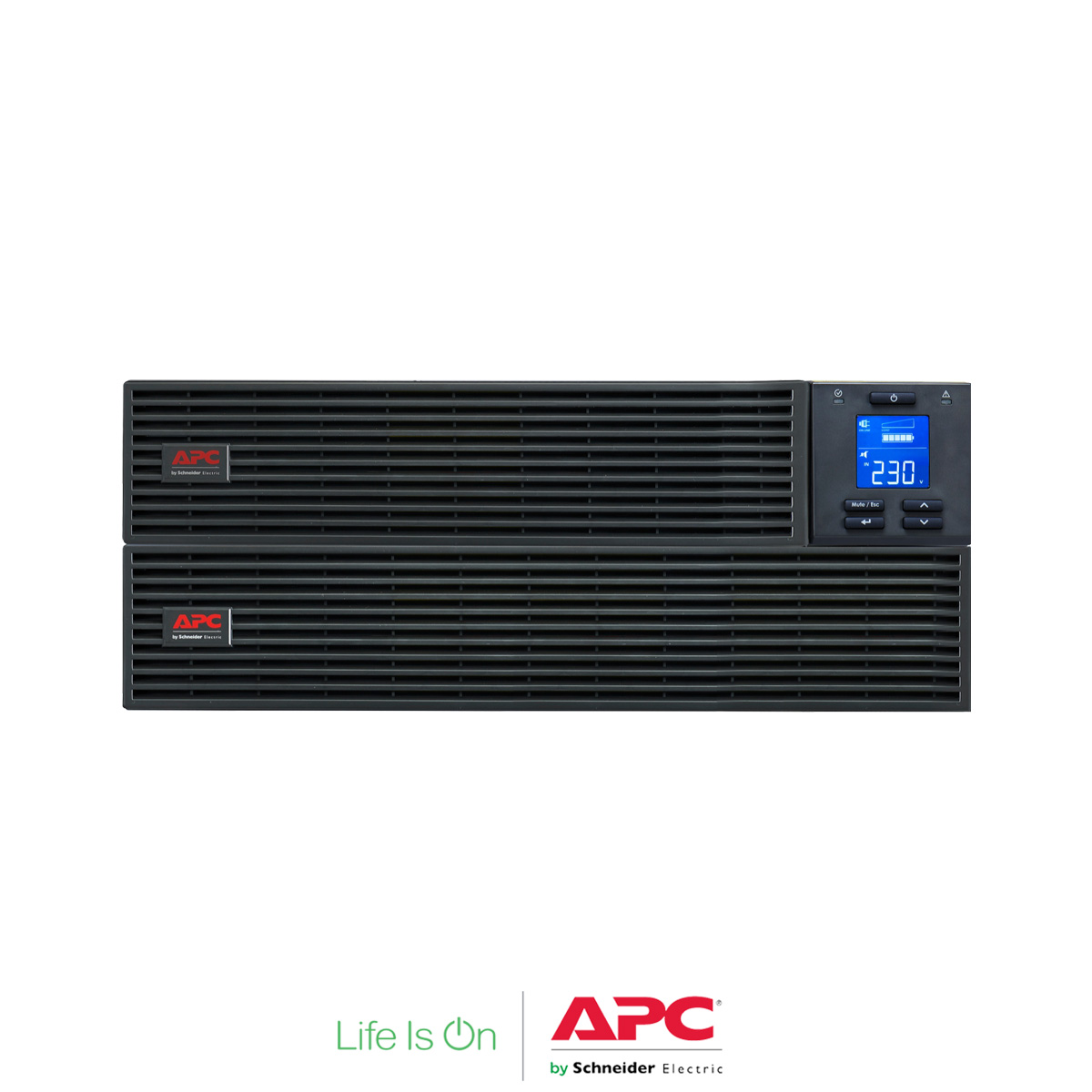

Control panel Multifunction LCD status and control console
Emergency power off Yes
Free slots 1



Surge Protection and Filtering
Surge energy rate 600 J



Packing Units
Package 1 Weight 79 kg
Package 1 Height 48.5 cm
Package 1 width 60 cm
Package 1 Length 83.6 cm



Contractual warranty
Warranty 2 years repair or replace
